If you’re looking to monitor your home’s energy usage in real-time, the Brultech GreenEye Monitor (GEM) is an excellent choice. With support for multiple current transformers (CTs) and integration with Home Assistant, you can track your energy consumption and optimize your power usage efficiently. I opted to purchase only the Brultech GEM without the DashBox, as I am utilizing Home Assistant as my primary data dashboard. The GEM provides highly accurate and sensitive measurements, capable of detecting power usage down to the milliwatt (mW) level. It transmits data to Home Assistant every 30 seconds (configurable). For visualization and historical analysis, InfluxDB and Grafana are integrated with Home Assistant to generate detailed energy consumption graphs. This also allows longer history reports and reduced storage requirements.

Hardware Specifications

• Current Transformer (CT) Channels: Up to 32 (independent circuit monitoring).
• Voltage Inputs: 2 (supports dual-phase and three-phase monitoring)
• Pulse Counter Inputs: 4 (for water, gas, or other utility meters)
• Temperature Sensor Inputs: 8 (optional external temperature probes)

Communication & Connectivity

• Wired Communication:
  • RS-232 Serial Port
  • Ethernet (with optional module)
  • RS-485 Expansion
• Wireless Communication:
  • Zigbee (with optional Zigbee module)
  • WiFi (with optional module)
• Supported Protocols:
  • MQTT (for Home Assistant integration)
  • HTTP POST (REST API data push)
  • Modbus RTU
  • DashBox Compatibility (Brultech’s proprietary energy dashboard)

Electrical Specifications

• Voltage Rating: 120V / 240V AC (supports single-phase and three-phase systems)
• Maximum CT Input Current: Varies by sensor type (50A, 100A, 200A, or 400A CT clamps)
• Accuracy: ±1% (with properly calibrated CTs)
• Power Supply: 12V DC (adapter included)

Software Features

• Live Power Monitoring (per circuit, real-time updates)
• Historical Data Storage (via DashBox or external logging systems)
• Support for Net Metering (solar and grid-tied energy tracking)
• Multi-Site Capability (monitor multiple properties with one system)
• Custom Alerting & Automations (via MQTT, Home Assistant, or third-party software)

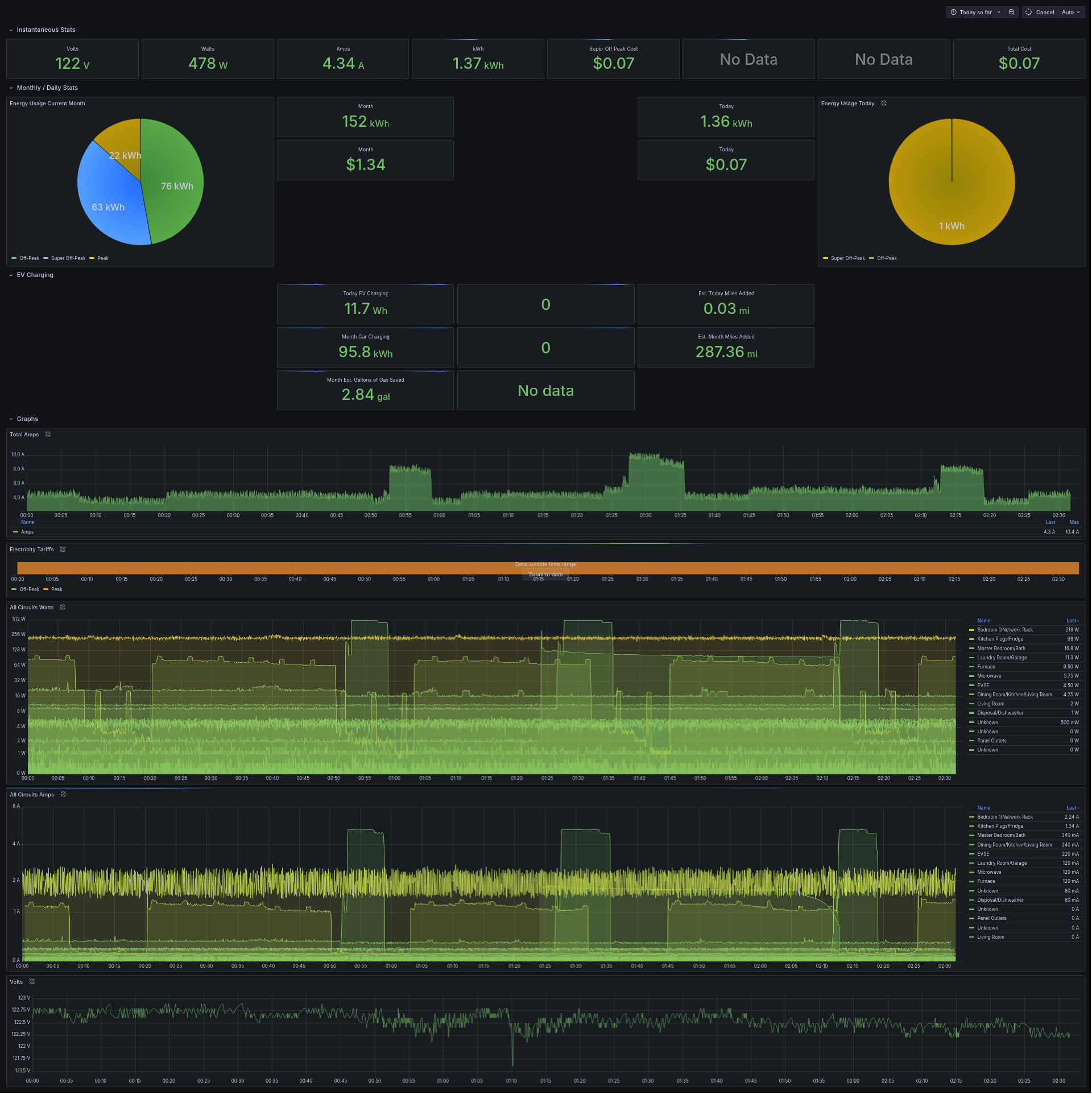

Below is my main energy dashboard for the house, using grafana!
